Umshini Wokuguqula Okuzenzakalelayo

Umshini Wokuguqula Okuzenzakalelayo

Umshini Wokujikisa Ozenzakalelayo usetshenziswa kakhulu ekuphenduleni ipuleti lokushisisa le-rice cooker kanye ne-lathing yekhava yabalandeli. Izinga eliphakeme lokuzenzakalelayo, ukusebenza kahle kokukhiqiza okuphezulu, kufika kumasekhondi angu-8 ukuqedela umkhiqizo. Ngaphandle kokuhlanganisa okungenalutho, zonke ezinye izinqubo zokucubungula zingaqedelwa ngamathuluzi omshini. I-Hydraulic disc machining inciphisa ukusebenza komsebenzisi futhi ithuthukise izimo zokusebenza.

Ithuluzi Lomshini Wokuguqula Okuzenzakalelayo{0}liyithuluzi eliphezulu elizenzakalelayo noma{1}}elisebenza ngokuzenzakalelayo{1}elincane. Uma kuqhathaniswa namathuluzi omshini ojwayelekile, inezici zokuguquguquka okuphezulu, ukukhiqiza okuphezulu, ukunemba okuphezulu kokucubungula, ukucubungula okuzinzile nokuthembekile, njll. Kunganciphisa amandla okusebenza kwabasebenzi futhi kusize ukuthuthukisa izinga lokuphathwa kokukhiqiza.

Njengamanje, ububanzi bokusetshenziswa kwamathuluzi omshini bubanzi kakhulu, kodwa umshini wethu we-lathe ulungele ngokukhethekile ukucubungula ama-discs okushisa. Uma isetshenziselwa ukucubungula amapuleti okushisa, isebenza kahle futhi ikhiqiza kakhulu kunezintambo ze-CNC, inqobo nje uma kukhona imishini embonini, kuzosetshenziswa amathuluzi omshini wokujikisa ngokuzenzakalelayo.

Okulandelayo yisakhiwo salo mshini ozishintshayo

1. Ukushintsha kwamandla amakhulu

2. Iswishi{1}}entathu yokukhipha i-jaw chuck

3. Ikhava yezokuphepha 4. Isitobhi esiphuthumayo

5. Hoxisa ikhava yokuphepha 6. Qala

7. Chuck clamp

8. Gcwalisa ithangi likawoyela we-hydraulic 68#

9. I-Platen Curvature Adjustment
10. Ukulungiswa Kokujula Kwesisindo
11. I-Lubricator Yenqola

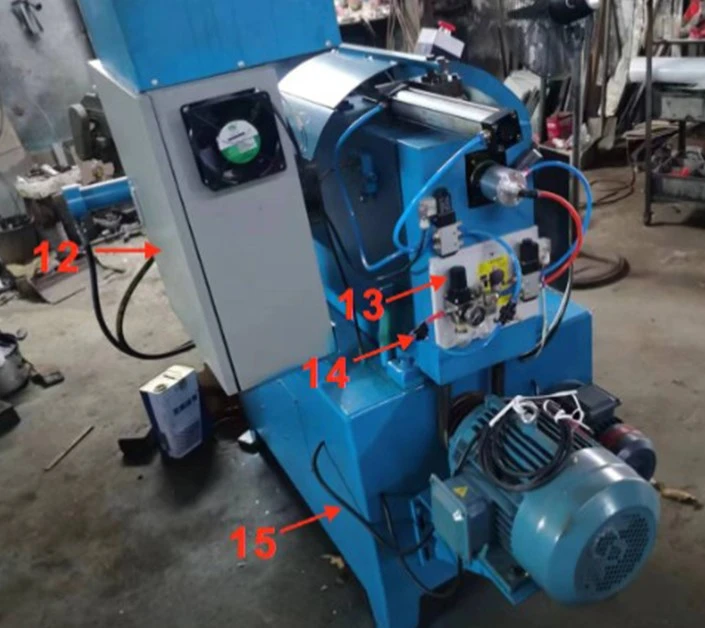

12. Iswishi yebhuleki yokuguqulwa kwemvamisa
13. Isilawuli sokucindezela kwe-pneumatic
14. 8 cm uxhumano lomugqa womoya
15. 380Intambo yamandla engu-V

16. Lungisa ijika elingaphezulu ngesikulufu
17. Lungisa ijika elingaphezulu ngesikulufu
18. Ukulungiswa kwesikulufu kububanzi obungaphandle bediski

19. Isimeli 1: Ukuphenduka komhlaba, ukuphenduka kwe-longitudinal
20. Isimeli 2: Ukujika kwangaphakathi, ukuphenduka okuphambene
21. Isimeli 3: Ukujika kwangaphandle, ukujika okuphambene

22. I-headstock stop switch ilawula i-lathe spindle. Ukuyicindezela phezulu kuvumela ukuzungezisa okuvamile, kuyilapho ukuyicindezela phansi kumisa i-spindle.
23. Iswishi yokumisa i-mold run: Ukuyicindezela kubuyisela i-lathe endaweni yayo yasekuqaleni ngemva kokuqedwa kokuphenduka kwendawo. Ukuyicindezela phansi kumisa i-lathe ekugcineni kobubanzi obungaphandle be-lathe. Ukuyicindezela uyibuyisele endaweni yokuqala kudinga isitobhi esiphuthumayo, njengoba kukhonjisiwe kuMfanekiso 4.
24. Iswishi yokumisa i-longitudinal: Ukuyicindezela phezulu kuvumela ukuphenduka kwedayamitha yangaphakathi nengaphandle ukuthi iqhubeke. Ukuyicindezela phansi kumisa i-diameter yangaphakathi nengaphandle ukuthi ingajiki. Ukuyicindezela uyibuyisele endaweni yokuqala kudinga isitobhi esiphuthumayo, njengoba kukhonjisiwe kuMfanekiso 4.
25. Ukucindezela Izibalo 23 no-24 kuvumela ukuphenduka okujwayelekile okuvundlile nokuma mpo. Ukucindezela Umfanekiso 25 kuvumela ukujika kwe-longitudinal endaweni emisiwe bese kuphuma ngokuzenzakalelayo (ukuze kulungiswe iphutha kumadiamitha angaphakathi nangaphandle). Ukucindezela Umfanekiso 26 kuvumela ukuphenduka kwe-longitudinal ukuxhuma indawo yokuqala evundlile (indawo yokuqala ye-lathe surface) bese ubuyela endaweni yokuqala ngemva kokufinyelela ekugcineni kwendawo ye-lathe. Ukucindezela isitobhi esiphuthumayo, njengoba kukhonjisiwe kuMfanekiso 4, kubuyisela umshini endaweni yawo yasekuqaleni.



27. Ukushintsha kwengcindezi kawoyela weHydraulic, ububanzi bengcindezi kawoyela: 25-28.

28. I-valve yokulawula isivinini ephendukayo (yobukhulu bezinhlamvu zamathuluzi).

29. I-valve yokulawula isivinini (yokulungisa isivinini sokungena kwethuluzi).

Izinga eliphakeme lokuzenzakalelayo, liqinisekisa ukusebenza kahle kokukhiqiza okuphezulu.

Idizayinelwe ngokukhethekile indiza ekhethekile, ithuthukisa ukunemba kwendawo ye-heater plate.

Ukusebenza okulula okunezidingo ezincane zobuchwepheshe zama-opharetha.
